Scale 8 Precision Oversize (75 X 50mm) Foil Set
Manufacturer: Elcometer
Part #: T99022255-8
Description: (1, 2, 5, 10, 20, 40, 80 (x2) MILS) Oversize (75 X 50mm)
Calibration foils or 'shims' are the most convenient way of creating a coating thickness standard on the substrate material, surface finish or form. This is the ideal method for adjusting the calibration of the coating thickness gauge to ensure the greatest possible accuracy.
Top 3 Core Selling Points:
- • Dual Metric and Imperial Values: Easily read measurements in both systems.
- • Traceable Serial Numbers: Ensure accuracy and accountability with unique numbers.
- • High Precision: With ±1% accuracy (±0.5µm for foils below 50µm), get reliable results.

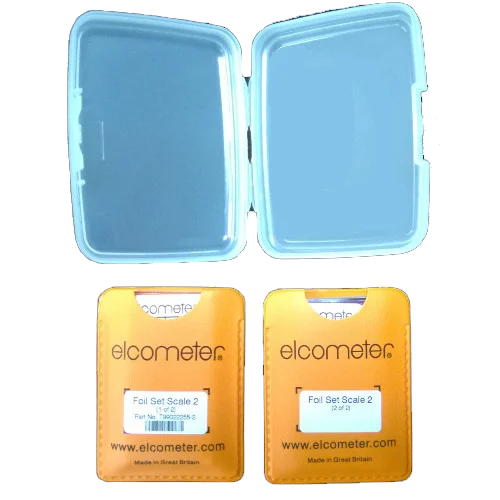

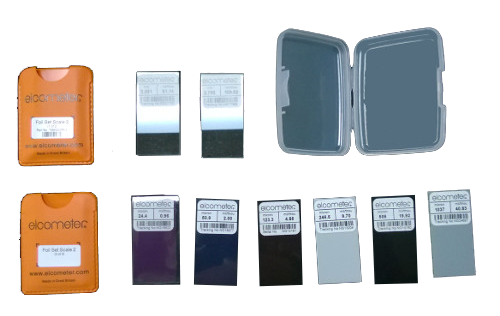

Please note: The range and color of foils may be different than what is pictured. Refer to the technical specifications tab to be sure of the range for each foil set.
Data Sheet
Additional Foil Sets:
| Scale | Un-Certified | Certified | Mils |
| Scale 1 | T99022255-1 | T99022255-1C | 1.0, 2.0, 5.0, 10, 20, 40 |
| Scale 2 | T99022255-2 | T99022255-2C | 1.0, 2.0, 5.0, 10, 20, 40, 80, 120 |
| Scale 3 | T99022255-3 | T99022255-3C | 10, 20, 40, 80, 160, 310 |
| Scale 4 | T99022255-4 | T99022255-4C | 0.5, 1.0, 2.0, 5.0, 10 |
| Scale 5 | T99022255-5 | T99022255-5C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 6 | T99022255-6 | T99022255-6C | 40, 80, 200, 370, 590, 980 |
| Scale 7(M3) | T99022255-7 | T99022255-7C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 8(2B) | T99022255-8 | T99022255-8C | 1.0, 2.0, 5.0, 10, 20, 40, 80 (x2) |
This Elcometer Scale 8 Precision Oversize Foil Set is perfect for those who need to accurately measure coating thickness. It's great for professionals in the coating industry, like painters and inspectors. You can use it in various settings, such as factories, workshops, or on-site projects. The foils are oversize, measuring 75 X 50mm, and come in a set with different thicknesses (1, 2, 5, 10, 20, 40, 80 (x2) MILS). They help you create a coating thickness standard on different materials and surfaces, ensuring your coating thickness gauge is calibrated accurately.
